STOLBERG (DE) - 2013-08-15 09:20:29
- Magnitude 2.4
Last update : 2016-11-24 12:48:00 Belgian time
Main parameters
| Date and time |
2013-08-15 09:20:29 UTC
2013-08-15 11:20:29 Belgian time |
| Type | Earthquake |
| Magnitude | ML 2.4 |
| Maximal intensity | III |
| Region | STOLBERG (DE) |
| Epicentral coordinates | 50.746° N, 6.310° E Uncertainty ± 1.2 km |
| Depth of hypocenter | 10.7 ± 1.3 km |
Data source : ROB (Royal Observatory of Belgium)
Location map
Quake measurements
Measurements by the Belgian seismic network
| Station | Epicentral distance (km) |
P-Wave arrival (hh:mm:ss.ss) | S-Wave arrival (hh:mm:ss.ss) | Maximal ground displacement (nm) |
|
|---|---|---|---|---|---|
| Code | Place | ||||
| MEMS | MEMBACH | 26 | 09:20:34.23 | 09:20:37.90 | - |
| EBN | EBEN-EMAEL | 45 | 09:20:37.24 | 09:20:42.80 | - |
| HOU | HOUVEGNEZ | 49 | 09:20:38.23 | 09:20:44.17 | - |
| LCH | LA CHARTREUSE | 52 | 09:20:38.61 | 09:20:45.22 | 146.4 |
| STI | SART TILMAN | 56 | 09:20:39.21 | - | - |
| KLB | KALBORN | 73 | 09:20:42.16 | 09:20:50.18 | 103.1 |
| CLA | CLAVIER | 80 | 09:20:43.31 | 09:20:52.52 | 45.9 |
| RCH | ROCHEFORT | 101 | 09:20:44.73 | - | - |
| VIA | VIANDEN | 91 | 09:20:45.08 | 09:20:55.18 | 113 |
| MOLT | MOL | 100 | 09:20:46.97 | - | - |
| MRD | MAREDSOUS | 120 | 09:20:49.94 | 09:21:04.89 | 44.4 |
| CSE | COURT-SAINT-ETIENNE | 123 | 09:20:50.01 | 09:21:04.67 | - |
| WLF | WALFERDANGE | 121 | 09:20:50.32 | 09:21:03.96 | 97.3 |
| UCCB | UCCLE | 137 | 09:20:50.85 | 09:21:07.60 | - |
| DOU | DOURBES | 142 | 09:20:53.26 | - | - |
| SNF | SENEFFE | 146 | 09:20:53.47 | - | - |
| RQR | RONQUIÈRES | 148 | 09:20:53.75 | - | - |
| BRQ | BRACQUEGNIES | 156 | 09:20:53.90 | - | - |
| SKQ | STEENKERQUE | 158 | 09:20:55.08 | 09:21:13.30 | 48.9 |
| LES | LESSINES | 174 | 09:20:57.19 | 09:21:16.73 | 41.5 |
| BOU | BOUGNIES | 172 | 09:20:57.37 | - | - |
Measurements by the German seismic network of Bensberg (University of Cologne)
| Station | Epicentral distance (km) |
P-Wave arrival (hh:mm:ss.ss) | S-Wave arrival (hh:mm:ss.ss) | Maximal ground displacement (nm) |
|
|---|---|---|---|---|---|
| Code | Place | ||||
| DRE | DREILÄGERBACH | 11 | 09:20:31.87 | 09:20:33.69 | - |
| KLL | KALLTALSPERRE | 11 | 09:20:31.91 | 09:20:33.74 | - |
| ROD | DALHEIM RÖDGEN | 45 | 09:20:36.73 | - | - |
| STB | STEINBACHTALSPERRE | 41 | 09:20:36.74 | - | - |
| HIL | HILLESHEIM | 57 | 09:20:39.64 | - | - |
| BNS | BENSBERG | 66 | 09:20:40.50 | - | - |
| BGG | BURG ELTZ | 94 | 09:20:45.55 | - | - |
| KOE | KÖPPEL | 107 | 09:20:47.74 | - | - |
Measurements by the Dutch seismic network of KNMI (Royal Netherlands Meteorological Institute)
| Station | Epicentral distance (km) |
P-Wave arrival (hh:mm:ss.ss) | S-Wave arrival (hh:mm:ss.ss) | Maximal ground displacement (nm) |
|
|---|---|---|---|---|---|
| Code | Place | ||||
| HGN | HEIMANSGROEVE | 27 | 09:20:34.16 | - | - |
| WTS | WINTERSWIJK | 143 | 09:20:52.71 | - | - |
Macroseismic
Data
| Total number of responses | 10 |
|---|---|
| Intensity I | 1 |
| Intensity III | 5 |
| Intensity IV | 2 |
| Intensity V | 2 |
Attention! The intensities derived from the macroseismic enquiry are raw unverified data.

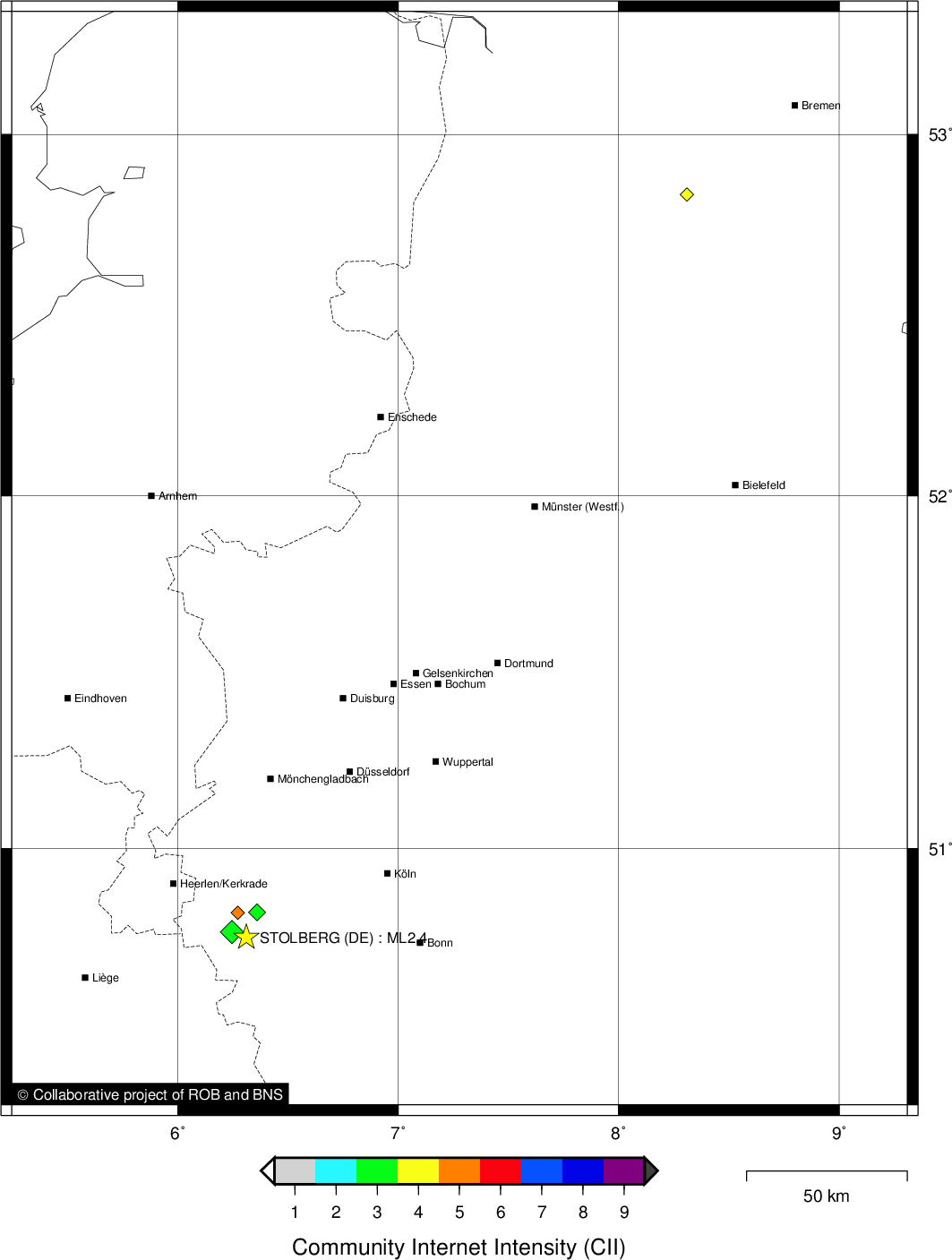

Map
