OTTIGNIES-LOUVAIN-LA-NEUVE (BE) - 2008-08-09 14:18:56
- Magnitude 2.2
Last update : 2016-11-24 11:25:04 Belgian time
Main parameters
| Date and time |
2008-08-09 14:18:56 UTC
2008-08-09 16:18:56 Belgian time |
| Type | Earthquake |
| Magnitude | ML 2.2 |
| Maximal intensity | II |
| Region | OTTIGNIES-LOUVAIN-LA-NEUVE (BE) |
| Epicentral coordinates | 50.663° N, 4.573° E Uncertainty ± 1.5 km |
| Depth of hypocenter | 8.2 ± 1.5 km |
Data source : ROB (Royal Observatory of Belgium)
Location map
Quake measurements
Measurements by the Belgian seismic network
| Station | Epicentral distance (km) |
P-Wave arrival (hh:mm:ss.ss) | S-Wave arrival (hh:mm:ss.ss) | Maximal ground displacement (nm) |
|
|---|---|---|---|---|---|
| Code | Place | ||||
| OTT | OTTIGNIES | 1 | 14:18:58.34 | 14:18:59.09 | - |
| UCCS | UCCLE | 21 | 14:19:00.35 | - | - |
| UCCB | UCCLE | 21 | 14:19:00.36 | 14:19:02.82 | 778 |
| RQR | RONQUIÈRES | 25 | 14:19:01.18 | 14:19:03.93 | 85 |
| SNF | SENEFFE | 27 | 14:19:01.37 | - | - |
| SKQ | STEENKERQUE | 35 | 14:19:02.66 | 14:19:07.78 | - |
| BRQ | BRACQUEGNIES | 37 | 14:19:03.12 | - | - |
| CTH | COUTHUIN | 41 | 14:19:03.59 | - | - |
| MRD | MAREDSOUS | 42 | 14:19:04.41 | - | - |
| GES | GESVES | 48 | 14:19:04.98 | 14:19:10.85 | 42.7 |
| LES | LESSINES | 52 | 14:19:05.50 | - | - |
| BOU | BOUGNIES | 54 | 14:19:06.43 | - | - |
| CLA | CLAVIER | 58 | 14:19:06.84 | 14:19:13.36 | - |
| DOU | DOURBES | 63 | 14:19:07.61 | 14:19:14.62 | - |
| RCH | ROCHEFORT | 73 | 14:19:09.27 | - | - |
| MOLT | MOL | 71 | 14:19:10.16 | - | - |
| MEMH | MEMBACH | 102 | 14:19:14.13 | - | - |
| KLB | KALBORN | 126 | 14:19:18.17 | - | - |
| WLF | WALFERDANGE | 158 | 14:19:22.62 | - | - |
Measurements by the German seismic network of Bensberg (University of Cologne)
| Station | Epicentral distance (km) |
P-Wave arrival (hh:mm:ss.ss) | S-Wave arrival (hh:mm:ss.ss) | Maximal ground displacement (nm) |
|
|---|---|---|---|---|---|
| Code | Place | ||||
| DRE | DREILÄGERBACH | 117 | 14:19:17.70 | 14:19:32.12 | - |
| KLL | KALLTALSPERRE | 123 | 14:19:18.15 | 14:19:33.39 | - |
| STB | STEINBACHTALSPERRE | 160 | 14:19:23.76 | 14:19:42.77 | - |
Macroseismic
Data
| Total number of responses | 75 |
|---|---|
| Intensity I | 22 |
| Intensity II | 27 |
| Intensity III | 24 |
| Intensity IV | 2 |
Attention! The intensities derived from the macroseismic enquiry are raw unverified data.

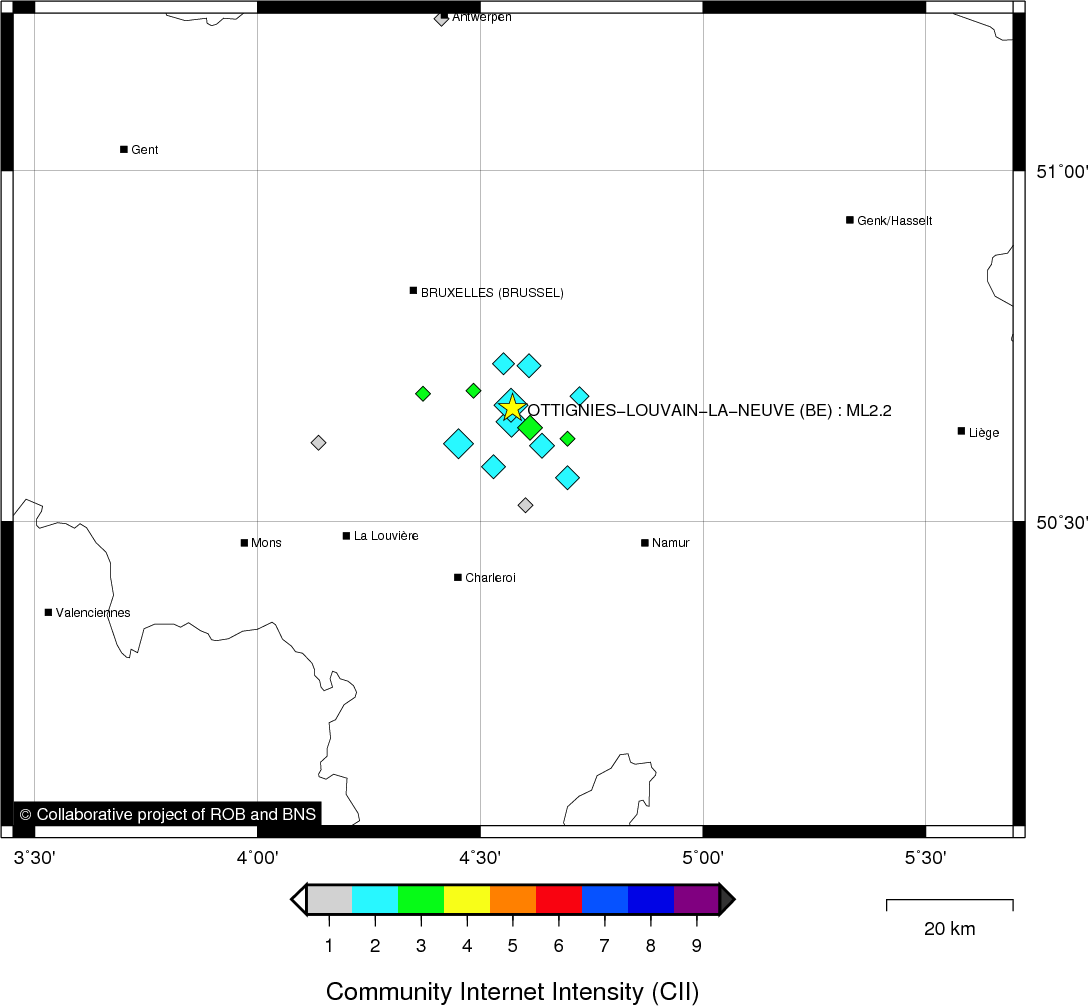

Map
