THE NETHERLANDS - 2012-08-16 20:30:34
- Magnitude 4.0
Last update : 2012-11-12 15:09:57 Belgian time
Main parameters
| Date and time |
2012-08-16 20:30:34 UTC
2012-08-16 22:30:34 Belgian time |
| Type | Known induced event |
| Magnitude | ML 4.0 |
| Region | THE NETHERLANDS |
| Epicentral coordinates | 53.373° N, 6.487° E Uncertainty ± 3.8 km |
| Depth of hypocenter | 10.0 km |
Data source : ROB (Royal Observatory of Belgium)

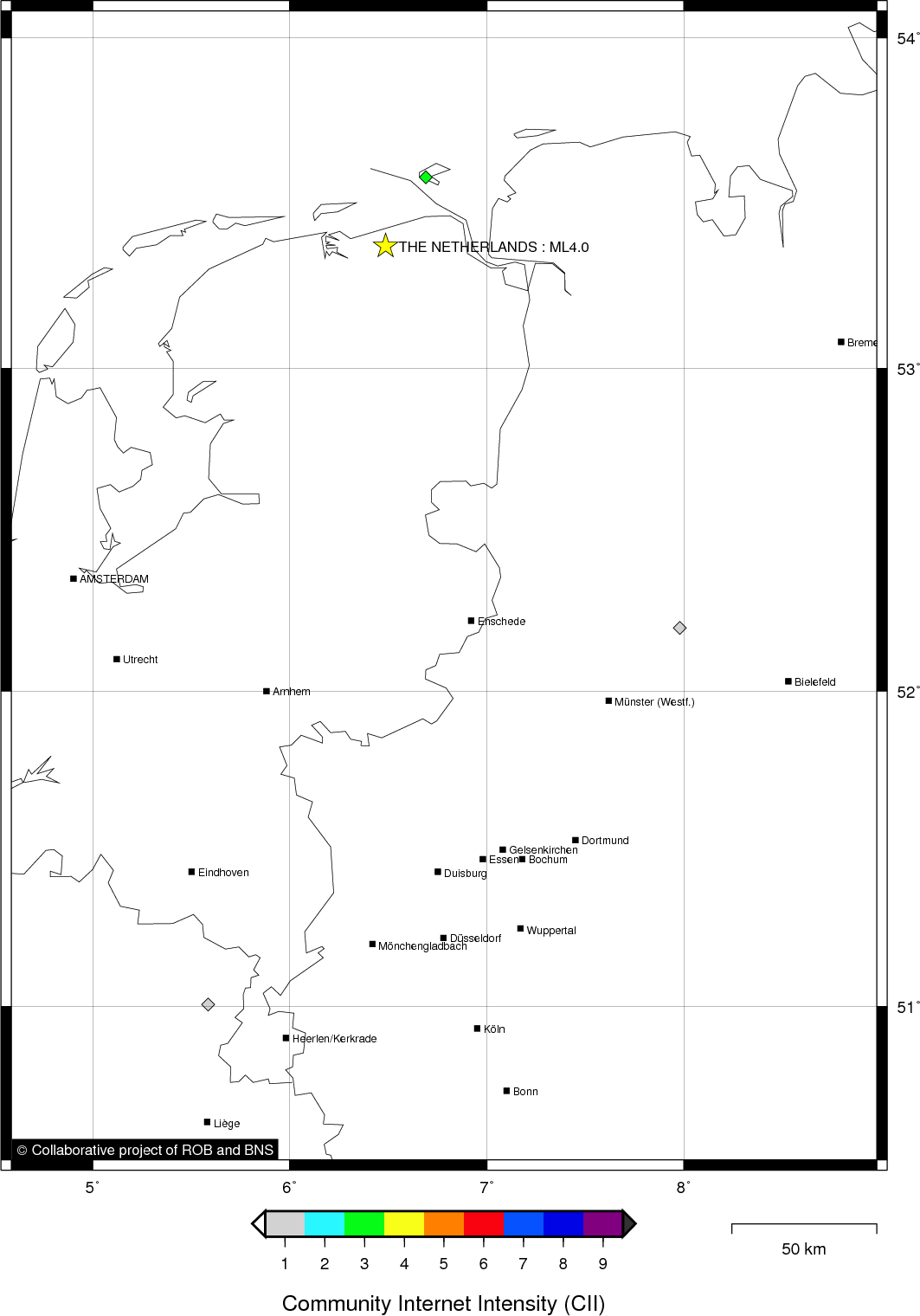

Location map
Quake measurements
Measurements by the Belgian seismic network
| Station | Epicentral distance (km) |
P-Wave arrival (hh:mm:ss.ss) | S-Wave arrival (hh:mm:ss.ss) | Maximal ground displacement (nm) |
|
|---|---|---|---|---|---|
| Code | Place | ||||
| HRK | HERKENBOSCH | 244 | 20:31:09.22 | - | - |
| DSLB | DESSEL | 257 | 20:31:10.11 | 20:31:48.86 | 95.9 |
| EBN | EBEN-EMAEL | 292 | 20:31:14.66 | - | - |
| MEMS | MEMBACH | 309 | 20:31:16.61 | 20:31:50.31 | - |
| STI | SART TILMAN | 317 | 20:31:17.81 | - | - |
| CLA | CLAVIER | 339 | 20:31:20.53 | 20:31:56.99 | - |
| GES | GESVES | 346 | 20:31:21.41 | 20:31:59.27 | - |
| RQR | RONQUIÈRES | 345 | 20:31:22.58 | - | - |
| SKQ | STEENKERQUE | 345 | 20:31:22.58 | 20:31:58.52 | - |
| LES | LESSINES | 347 | 20:31:22.61 | - | - |
| SNF | SENEFFE | 353 | 20:31:23.36 | - | - |
| MRD | MAREDSOUS | 362 | 20:31:23.68 | - | - |
| RCH | ROCHEFORT | 369 | 20:31:23.92 | 20:32:19.11 | 82.7 |
| KLB | KALBORN | 365 | 20:31:24.17 | - | - |
| BRQ | BRACQUEGNIES | 360 | 20:31:24.26 | - | - |
| MN5 | MONS - RW (DPA) | 369 | 20:31:25.27 | 20:32:19.21 | - |
| MN8 | MONS - UNIVERSITÉ DE MONS | 368 | 20:31:25.80 | 20:32:04.67 | - |
| MN6 | MONS - MUSÉUM RÉGIONAL DES SCIENCES NATURELLES | 368 | 20:31:26.12 | 20:32:20.96 | - |
| BOU | BOUGNIES | 375 | 20:31:26.27 | 20:32:23.59 | - |
| MN9 | MONS - SWDE | 370 | 20:31:26.32 | 20:32:06.01 | - |
| VIA | VIANDEN | 383 | 20:31:26.32 | 20:32:04.17 | - |
| MN1 | MONS - LOTTO MONS EXPO | 369 | 20:31:26.38 | 20:32:05.34 | - |
| DOU | DOURBES | 387 | 20:31:27.20 | 20:32:01.76 | - |
| WLF | WALFERDANGE | 414 | 20:31:30.16 | 20:32:12.79 | - |
| MN2 | MONS - CITÉ ADMINISTRATIVE | 369 | - | 20:32:06.60 | - |
Measurements by the Dutch seismic network of KNMI (Royal Netherlands Meteorological Institute)
| Station | Epicentral distance (km) |
P-Wave arrival (hh:mm:ss.ss) | S-Wave arrival (hh:mm:ss.ss) | Maximal ground displacement (nm) |
|
|---|---|---|---|---|---|
| Code | Place | ||||
| WIT | WITTEVEEN | 63 | 20:30:44.89 | - | - |
| WTS | WINTERSWIJK | 155 | 20:30:59.74 | - | - |
| HGN | HEIMANSGROEVE | 293 | 20:31:14.96 | - | - |
Macroseismic
Data
| Total number of responses | 4 |
|---|---|
| Intensity I | 2 |
| Intensity III | 2 |
Attention! The intensities derived from the macroseismic enquiry are raw unverified data.
