DIENETHAL (DE) - 2023-12-18 12:09:09
- Magnitude 2.7
Last update : 2024-02-05 15:35:29 Belgian time
Main parameters
| Date and time |
2023-12-18 12:09:09 UTC
2023-12-18 13:09:09 Belgian time |
| Type | Earthquake |
| Magnitude | ML 2.7 |
| Region | DIENETHAL (DE) |
| Epicentral coordinates | 50.298° N, 7.768° E Uncertainty ± 1.1 km |
| Depth of hypocenter | 12.4 ± 1.1 km |
Data source : ROB (Royal Observatory of Belgium)
Location map
Quake measurements
Measurements by the Belgian seismic network
| Station | Epicentral distance (km) |
P-Wave arrival (hh:mm:ss.ss) | S-Wave arrival (hh:mm:ss.ss) | Maximal ground displacement (nm) |
|
|---|---|---|---|---|---|
| Code | Place | ||||
| VIA | VIANDEN | 119 | 12:09:28.97 | 12:09:43.26 | 174.4 |
| KLB | KALBORN | 120 | 12:09:29.54 | 12:09:44.12 | 116 |
| MRG | MONT RIGI | 122 | 12:09:30.32 | 12:09:44.60 | 77.1 |
| HOU | HOUVEGNEZ | 125 | 12:09:31.14 | 12:09:44.56 | 220.3 |
| MEMS | MEMBACH | 129 | 12:09:31.24 | 12:09:46.44 | 220.2 |
| MEMH | MEMBACH | 129 | 12:09:31.24 | - | - |
| WLF | WALFERDANGE | 136 | 12:09:31.45 | 12:09:46.17 | 134.2 |
| EBN | EBEN-EMAEL | 158 | 12:09:35.06 | 12:09:53.28 | 176.1 |
| LCH | LA CHARTREUSE | 158 | 12:09:35.60 | 12:09:53.65 | 60.8 |
| STI | SART TILMAN | 159 | 12:09:36.96 | 12:09:52.36 | 71.4 |
| OPTB | OPITTER | 175 | 12:09:37.37 | 12:09:57.10 | - |
| CLA | CLAVIER | 176 | 12:09:37.41 | 12:09:57.05 | 51.3 |
| RCH | ROCHEFORT | 182 | 12:09:38.77 | 12:09:59.02 | 55.7 |
| MRD | MAREDSOUS | 213 | 12:09:42.16 | 12:10:06.99 | 47.1 |
| DOU | DOURBES | 227 | 12:09:44.39 | 12:10:08.88 | 79.5 |
Measurements by the German seismic network of Bensberg (University of Cologne)
| Station | Epicentral distance (km) |
P-Wave arrival (hh:mm:ss.ss) | S-Wave arrival (hh:mm:ss.ss) | Maximal ground displacement (nm) |
|
|---|---|---|---|---|---|
| Code | Place | ||||
| KOE | KÖPPEL | 14 | 12:09:12.80 | 12:09:14.61 | - |
| NAST | IGS NASTÄTTEN | 13 | 12:09:13.08 | 12:09:15.03 | - |
| BGG | BURG ELTZ | 32 | 12:09:15.89 | 12:09:19.61 | - |
| BNS | BENSBERG | 85 | 12:09:24.31 | 12:09:35.38 | - |
| KLL | KALLTALSPERRE | 110 | 12:09:28.56 | 12:09:42.10 | - |
| DRE | DREILÄGERBACH | 116 | 12:09:29.23 | 12:09:42.89 | - |
| BA02 | STOLBERG (ACCELEROMETER) | 122 | 12:09:30.26 | 12:09:44.55 | - |
| ROD | DALHEIM RÖDGEN | 146 | 12:09:33.64 | 12:09:51.76 | - |
Measurements by the Dutch seismic network of KNMI (Royal Netherlands Meteorological Institute)
| Station | Epicentral distance (km) |
P-Wave arrival (hh:mm:ss.ss) | S-Wave arrival (hh:mm:ss.ss) | Maximal ground displacement (nm) |
|
|---|---|---|---|---|---|
| Code | Place | ||||
| MAME | MAMELIS | 139 | 12:09:32.41 | 12:09:49.07 | - |
| HGN | HEIMANSGROEVE | 140 | 12:09:32.66 | 12:09:48.84 | - |
| VKB | VALKENBURG | 154 | 12:09:34.55 | 12:09:52.22 | - |
| WTSB | WINTERSWIJK NEW | 198 | 12:09:40.34 | - | - |
Macroseismic
Data
| Total number of responses | 7 |
|---|---|
| Intensity II | 1 |
| Intensity III | 5 |
| Intensity IV | 1 |
Attention! The intensities derived from the macroseismic enquiry are raw unverified data.

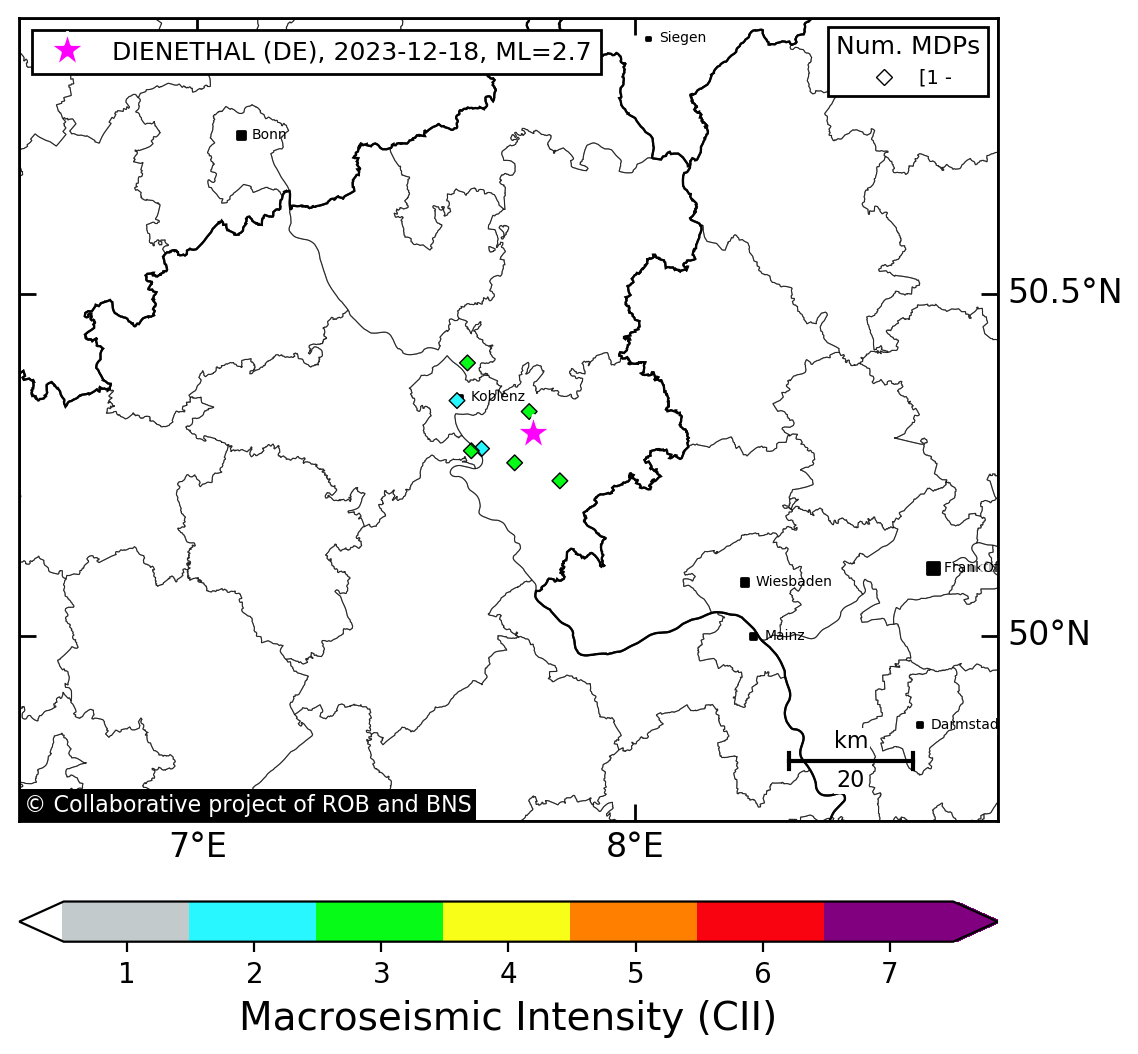

Map
Data policy
Please read on this notice to learn more about our data policy.
